Intelligent control

- Single-pulse closed-loop control, precise position triggering, real-time monitoring of pulse energy and deviation closed-loop regulation, "measurement-planning-processing" integrated closed-loop.

Deformation control

- Solved the problem of spot shape distortion caused by large incidence angle light path and projection angle in wide-field scanning, ensuring that the spot size and shape of pulsed laser remain consistent at any position in space

In-service measurement

- A combination of scanning mirror swing and binocular vision to achieve efficient and precise in-situ measurement of the entire panel, and the self-developed algorithm to realize three-dimensional reconstruction, curved surface registration and machining accuracy evaluation.

Process planning

- Software integration process planning algorithm, to achieve the overall panel laser shot peening forming parameters setting, machining area, machining path and other graphical display

Human-machine friendly

- Autonomous development of operation software with a friendly human-machine interaction interface, integrating equipment control, process planning, shot peening processing, in-situ measurement and other functions, to achieve an integrated closed-loop control of "measurement-planning-processing"

Highly integrated

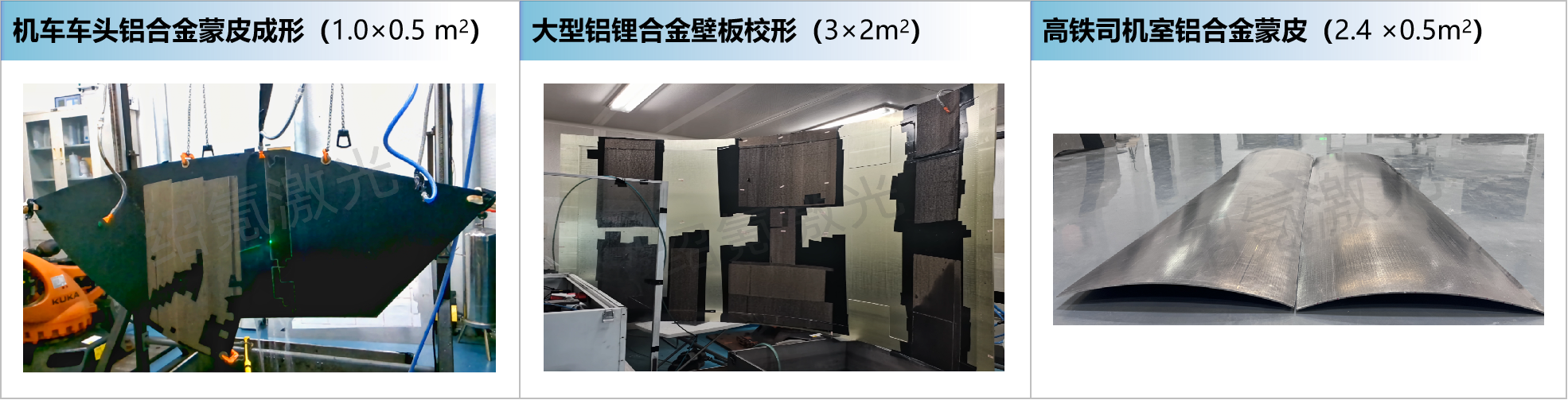

- Compact structure, highly integrated, convenient to operate, meeting the needs of large-scale overall panel forming or straightening in the fields of aerospace, rail transit, etc.
