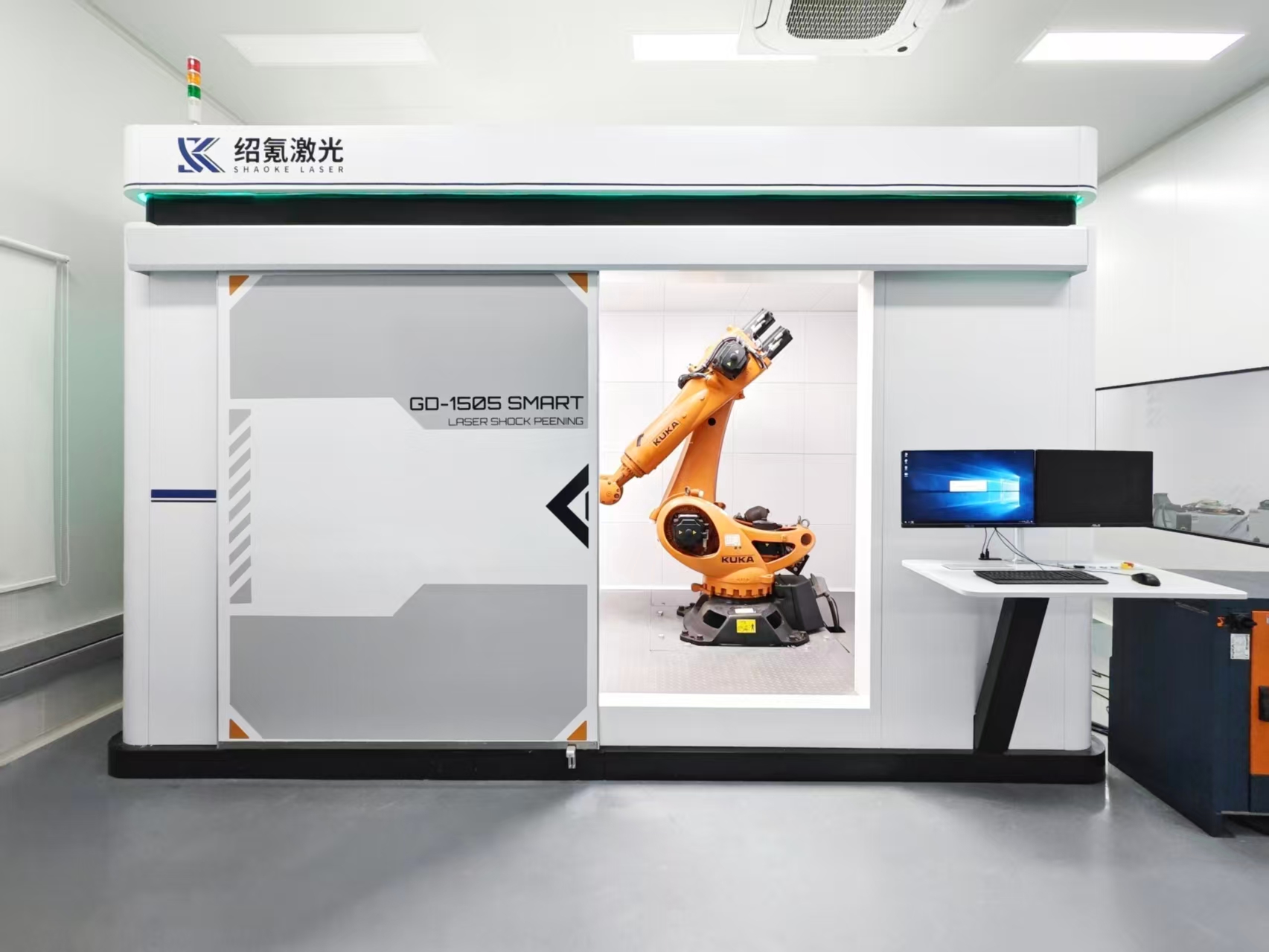

Fixed optical path laser shot peening equipment 价格:

Fixed optical path laser shot peening equipment, the optical path is fixed, the parts to be processed are fixed at the end of the robot, and the laser impact intensification position is changed by the robot movement. Integrating high-energy pulsed lasers, industrial robots, etc., it can realize dynamic monitoring and deviation control of pulse energy, precise triggering of single pulse, and stable control of process quality. It is used in aerospace, nuclear power, aviation development and other fields to strengthen the surface performance of key components.

Online inquiry
Product Features Specifications Cases

Precision Impact

- Single-pulse "time-space" cooperative closed-loop control, realizing one-to-one correspondence between a single pulse and physical information such as spatial position, sound and light

High-Efficiency Machining

Precise triggering of laser pulses at target positions during continuous robot movement, improving the machining efficiency of complex curved surfaces by more than 7 times compared with traditional methods

Intelligent Control

- Integrating AI and sensor monitoring technologies to achieve online intelligent monitoring of process quality such as pulse energy and confinement layer status

Digital Twin

Integrating information including physical models, sensor data and operation history to realize simulation and real-time dynamic display of the laser shock process

Environmental Protection and Safety

Integrating devices such as air purification and wastewater treatment to achieve green disposal of waste gas and wastewater, ensuring cleanliness and environmental friendliness

Human-Machine Friendly

Realizing fully automated machining of the laser peening process with a concise and user-friendly human-machine interface

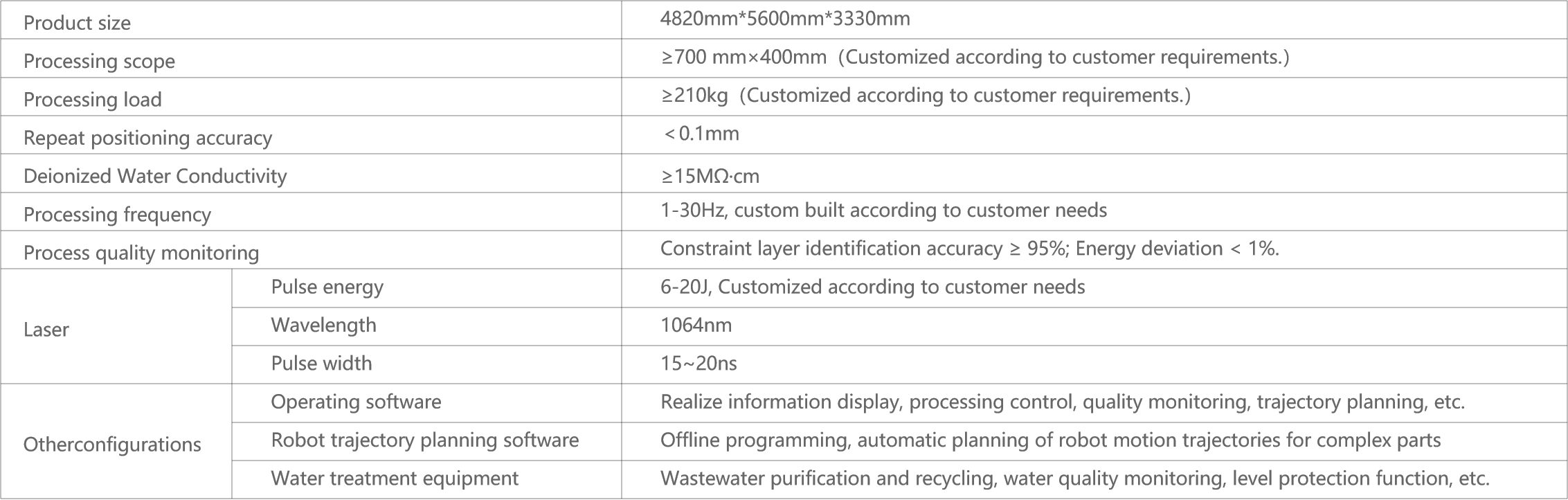

Product size

4820mm*5600mm*3330mm

Processing scope

≥700 mm×400mm

Processing load

≥210kg

Repeat positioning accuracy

<0.1mm

Processing frequency

1-30Hz, custom built according to customer needs

Process quality monitoring

Constraint layer identification accuracy ≥ 95%; Energy deviation < 1%.

Laser

Pulse energy

6-20J, Customized according to customer needs

Wavelength

1064nm

Pulse width

15~20ns

Other configurations

Operating software

Realize information display, processing control, quality monitoring, trajectory planning, etc.

Robot trajectory planning software

Offline programming, automatic planning of robot motion trajectories for complex parts

Water treatment equipment

Wastewater purification and recycling, water quality monitoring, level protection function, etc.
